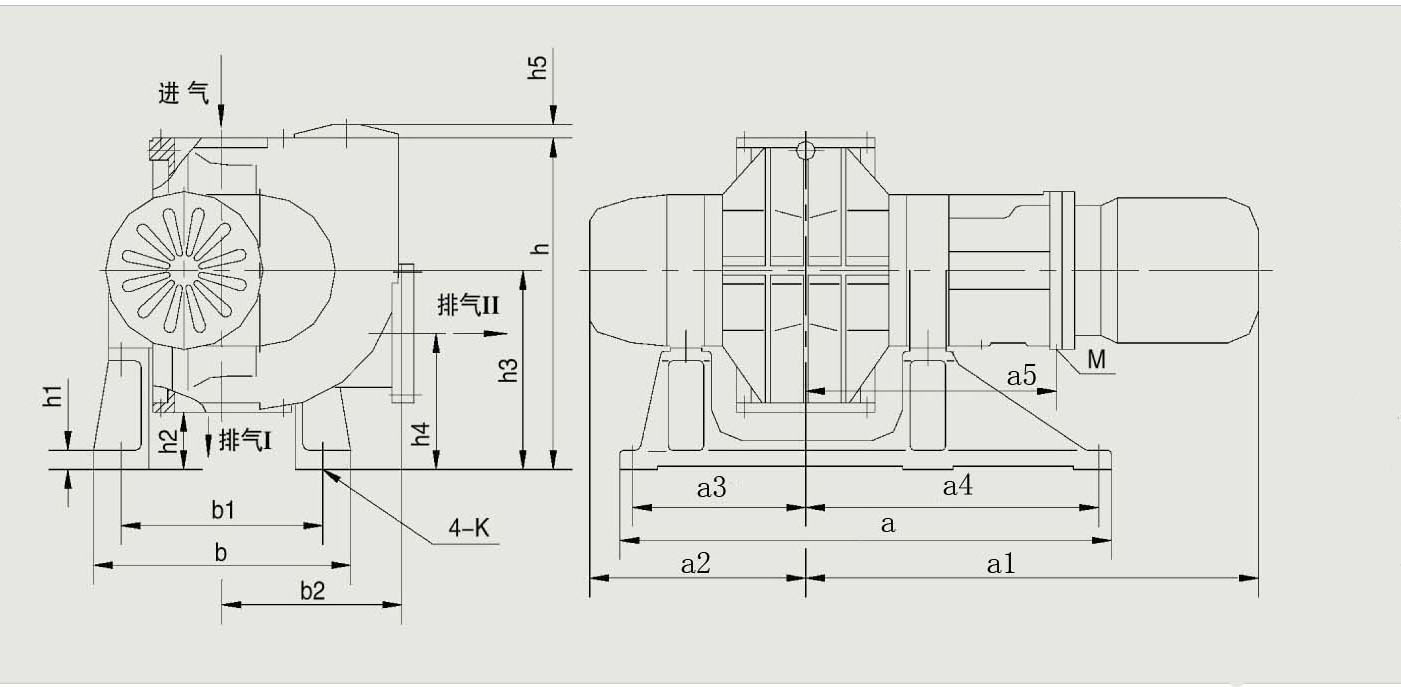

ZJP-70A
|
型號 |
a |
a1 |
a2 |
a3 |
a4 |
a5 |
M |
b |
b1 |
b2 |
h |
h1 |
h2 |
h3 |
h4 |
K |
DN |
D1 |
D2 |
H |
dN |
d1 |
d2 |
G |
NN |
N1 |
N2 |
Q |
|
ZJP-30A |
550 |
535 |
225 |
170 |
340 |
|
|
290 |
230 |
192 |
335 |
20 |
65 |
202 |
142 |
Φ14 |
80 |
125 |
145 |
4-M8 |
80 |
125 |
145 |
4-M8 |
80 |
125 |
145 |
4-M8 |
|
ZJP-70A |
550 |
535 |
225 |
170 |
340 |
|
|
290 |
230 |
192 |
335 |
20 |
65 |
202 |
142 |
Φ14 |
80 |
125 |
145 |
4-M8 |
80 |
125 |
145 |
4-M8 |
80 |
125 |
145 |
4-M8 |
|
ZJP-150 |
620 |
623 |
252 |
195 |
385 |
|
|
408 |
320 |
245 |
475 |
30 |
90 |
275 |
195 |
Φ18 |
100 |
145 |
170 |
4-M10 |
100 |
145 |
170 |
4-M10 |
100 |
145 |
170 |
4-M10 |
|
ZJP-300 |
780 |
747 |
343 |
275 |
465 |
|
|
408 |
320 |
285 |
525 |
30 |
90 |
315 |
215 |
Φ18 |
150 |
195 |
220 |
8-M10 |
150 |
195 |
220 |
8-M10 |
150 |
195 |
220 |
8-M10 |
|
ZJP-600B |
815 |
950 |
400 |
277.5 |
482.5 |
|
|
596 |
480 |
375 |
673 |
35 |
70 |
375 |
235 |
Φ24 |
200 |
250 |
275 |
8-M10 |
200 |
250 |
275 |
8-M10 |
200 |
250 |
275 |
8-M10 |
|
ZJP-1200B |
1000 |
1160 |
505 |
316 |
632 |
646 |
M20 |
650 |
520 |
425 |
675 |
35 |
65 |
385 |
250 |
Φ24 |
250 |
310 |
335 |
12-M10 |
200 |
260 |
285 |
12-M10 |
200 |
260 |
285 |
12-M10 |
|
ZJP-2500Cl* |
920 |
1370 |
600 |
415 |
415 |
773 |
M24 |
700 |
610 |
460 |
705 |
35 |
40 |
390 |
220 |
Φ26 |
320 |
395 |
425 |
12-M12 |
320 |
395 |
425 |
12-M12 |
250 |
310 |
335 |
12-M10 |
注：ZJP-2500CL外形尺寸與ZJP-2500B相同
